Thermosetting Plastic Polymers and Resins are commonly referred to as Thermosets. They are a form of polymer that is hardened by the process of curing soft liquids, viscous liquid prepolymer, and resin. Curing hardens the substance to such an extent that it becomes irreversible. It is performed by inducing heat and radiation through either high amounts of pressure or by mixing a catalyst. The heat used in curing is not always applied through external forces.

Rather, a reaction of resin and curing agent which accounts as the hardening catalyst is used. An insoluble and infusible network of polymers is created through Curing. This is a chemical reaction that gives rise to cross-linking in the chains of the polymer. More often than not, the making of a polymer usually begins with a malleable or liquid before it undergoes the process of curing.

Later, the substance is moulded into its final form. It can also be used for fixating and adhering to things. A thermoset is different from a thermoplastic because it can seldom be reshaped or melted. On the contrary, a thermoplastic polymer is originally produced as a pellet which is later melted, pressed, or goes through injection moulding which transforms it into the final product.

So far, we’ve established that a thermoset is an insoluble and non-melting material. This differs from a thermoplastic because it almost has opposing properties. Although both these substances fall in the category of polymers, their structure is distinct.

When it comes to the properties of thermoset materials, they are stronger in comparison to thermoplastics. This happens due to the cross-linking chain in the polymer that was explained earlier. The material is stiff and high in modulus, it has deformation responses that are unique when exposed to mechanical loading. This formation also gives them the advantage of bearing changes in temperature which makes them stable.

The ability to remain stable is constant in a wide range of temperatures, this is more than the range that is bearable by thermoplastics. Thermosets are used in corrosive service environments, chemical industries, mining, and wastewater industries because the covalent bond in its polymer chain is firm and unbreakable.

The systems build through thermosets offer custom formulation flexibility on a larger scale. A higher level of loading additives is enabled in thermosets even when they are using functional fillers, reinforcing fibers, and performance-enhancing additives. Their rheological nature should be credited for enabling most of these activities. These tailorable properties have helped industries by unlocking a higher level of functionality, custom compound formulation, and a greater loading potential. Almost all performance challenges can be overcome by engineers, designers, and manufacturers when they are assisted with the ability of high-level customization that is provided by thermosets.

Thermosets that are compounded with fibres, form fibre-reinforced polymer composites. These are used in replacement parts and structural factory-finished structural composites finished and cured composite repair as well as protection material. The factory-applied protective coating, site applied and cured construction and even the maintenance department uses the binder for solid fillers and aggregates that form a particulate-reinforced polymer composite.

Linear polymer chains & Cross linked thermosetting plastic
https://en.wikipedia.org/wiki/Thermosetting_polymer

Here are some examples of thermosetting plastic:

Polyester Resin Thermosetting Plastic



Polyester resins are formed by the reaction of polyhydric alcohols and dibasic organic which makes them an unsaturated synthetic. In the diacid functionality, a commonly used raw material is Maleic Anhydride. This form of thermoset is used in the toner of laser printers, sheet moulding compound and bulk moulding compound. The build of kitchens, restaurants and restrooms which require cost-effective and washable walls use fibreglass reinforced plastic. These wall panels use polyester resins combined with fibreglass.

The cured-in-place pipe applications have also started to use this particular material extensively. They are currently used for overlaying bridges and roads in the USA by their Departments of Transportation. A specific term is used for these, called the PCO Polyester Concrete Overlays. These are sliced and cut with high levels of styrene that is based on isophthalic acid and this can go up to 50%. Even though epoxy-based materials are used in anchor bolt adhesives, a polyester can be used as a substitute.

Many companies faced odour issues, and this has resulted in the expansion of styrene free systems. A polyester resin can be recognized by its pale-coloured liquid which consists of a solution of polyester inside a monomer. These usually contain styrene which is the cause of the unpleasant odour.

Usage of polyester resin is advantageous because it resists not just water but numerous chemicals. The material also doesn’t age or suffer damage because of harsh weathers. A primary reason behind companies using resin is its cost-effectiveness. These do not break down even at a high temperature like 80-degree Celsius.

They are also easy to merge with glass fibres, in addition to that, their shrinkage level during the process of curing is low. It is anywhere between 4% to 8%. However, a major drawback is the unpleasant styrene order. Polyesters are harder to mix in comparison to other resins. It is also a threat which poses safety issues due to the toxic fumes, catalysts and MEKP. When it comes to Substrates, they are not an ideal material for bonding. Epoxy resin tends to be stronger than polyester resin, precisely their finished cure.

There is another form of polymers known as the Unsaturated polymers. These are formed by creating a reaction between organic compounds, polyols and hydroxy functional groups which also include saturated as well as unsaturated dibasic acids. Most polyols are used as glycols like ethylene glycol.

In addition to this, they also use acids like maleic acid. Phthalic acid and isophthalic acid. Esterification reaction takes place where water (a by-product) is continuously removed. Lowering the viscosity of the resin is done by adding unsaturated polyesters and additives like styrene. A solid cross-linking chain is formed by the liquid resin that was initially used.

The process of curing of thermosets such as polyester resins is done exothermically. A charred and even lightning is caused during curing with the use of an excessive initiator where a catalyst is also involved. The process of biodegradation of polyester resin is caused by Lichens. This has also been observed in the archaeological location of Baelo Claudia and other Roman cities.

Thermosetting Plastic polyester resin
Photo Credit: https://www.indiamart.com/proddetail/polyester-resin-8864732833.html

Polyurethanes Thermosetting Plastic

The polymer which consists of organic units which are linked by carbamate is known as Polyurethane. Most of these polyurethanes are available in the form of thermosetting plastic polymers but a thermoplastic version of them is also available. However, the latter tends to melt when heated.

These polymers are traditionally created by a reaction of a polyol with either diisocyanate or triisocyanates. Polyurethane is classified as an alternating copolymer because it contains monomers of two types that polymerise after one another. There are two or more functional groups in a molecule of isocyanates and polyols which are used to create polyurethanes.

There are numerous applications of Polyurethane such as rigid foam insulation panels, spray foam, tires, hard plastic-parts, hoses, microcellular foam seals and gaskets, durable elastomeric wheels, carpet underlay and condoms.

These are a resultant of two or more liquid streams. Their polyol stream includes surfactants, catalysts and blowing agents. These two components are either simply called a system or polyurethane system. In North America, the isocyanates are referred to as the ‘iso’ or the ‘A-side’. The ‘B-side’ or the ‘poly’ is used to indicate the blend of additives and polyols.

The discovery of Polymers first happened in Leverkusen, Germany by Otto Bayer and his co-workers. Immediately, this material was used to produce flexible foams, fibres and PUs. Even though their production was limited, they were used to coat aircraft in the second World War.

When it comes to the properties of polyurethane, it largely depends on the isocyanates and polyols. If the polyol is flexible and long, it produces a soft and elastic polymer. If cross-linking is used extensively, the polymer is more rigid. The consistency of polymer differs with alteration in linking and chains. One can say that polyurethane is much like a single giant molecule.

As of now, there is a large versatility in the types of polyurethane being produced. These range from large and high-volume board stock and bun stock production as well as intermediate pour piece-part operations. Even today, the principles followed for manufacturing this material has not wavered. They start with a liquid blend of isocyanate and resin with a specified ratio and mix it until they obtain a homogeneous blend. This reacts by dispensing the liquid onto the surface in a mould.

Finally, the procedure ends after curing and de-moulding the remaining parts. As per the data provided in 2007, 12 million metric tons of polyurethane was used as a raw material. It also had an average annual growth rate of about 5%. Experts have predicted that by the year 2022, the revenue generated from this material in the global market will rise to an approximate US$75 billion.

A drawback of Polyurethanes is that it crumbles when there is hydrolysis. This happens like when shoes being left in the closet which reacts with air and moisture and this is very common. The biodegradation of polyurethane is caused by Ecuadorian fungus Pestalotiopsis in anaerobic and aerobic conditions. This reaction can take place in pits of landfills. Museums have also reported that items which used polyurethane have degraded over time.

Thermosetting Plastic Polyurethanes
Image credit: https://dev.rodpub.com/images/163/909_main.jpg

Polyurea Thermosetting Plastic



A polyurea is a form of elastomer that is formed with the reaction of a synthetic resin blend and an isocyanate component. This is derived after undergoing step growth polymerization. The nature of an isocyanate is usually either aliphatic or aromatic. Any type of isocyanate reaction can be considered here, it also includes a polymer, quasi-prepolymer, the prepolymer and even monomer.

The hydroxyl-terminated polymer resin or an amine-terminated polymer resin can be used to create quasi-prepolymers and prepolymers. The resin blends are formed by the usage of amine-terminated chain extenders and amine-terminated polymer resins. There are no intentional hydroxyl moieties present in the amine-terminated polymer resins.

When an amine-terminated polymer resin fails to fully convert, it results in a hydroxyl. Additives and non-primary components are also a part of the resin blend more often than not. pre-dispersed pigments inside a polyol carrier are used as hydrosols in these additives. However, a catalyst is never used for making a resin blend. The literal translation of the word Polyurea ‘many to urinate’ is derived from a Greek word known as ουρίας – oûron. This is a reference to the substance urea which is found in urine.

Carbamide or Urea has the chemical formula (NH2)2CO and it is an organic compound. This molecule consists of two amino groups which are conjoined by a carbonyl functional group. Urea linkages are formed in polyurea when alternative monomer units of amines and isocyanates start to reach one another. A carbamic acid intermediate that is formed by water can be reacted with isocyanates to create Urea.

Splitting of carbon dioxide leads to the decomposition acid and this reaction leaves behind an amine. Polyurethane foam is made by this simple two-step reaction. Carbon dioxide which is released in this reaction due to the blowing agent should be named as polyurethane/urea foam.

Spandex, which was created in 1959 first used the copolymers Polyurethane and Polyurea. Polyurea was first invented with the protection of tabletop edges in mind. However, Mark S Barton and Mark Schlichter developed a two-component polyurea and polyurethane spray elastomers in the year 1990.

It was relatively faster to react and had moisture insensitivity which was apt for coating the surface areas of large-scale projects. These include manhole and tunnel coatings, truck bed liners, secondary containment and truck bed liners. These were also adhesive for steel and concrete because they provided a proper surface treatment and primed them. These are also used in building strong armours and spray moulding.

According to a study in 2014, it was showcased how polyurea elastomer material contains self-healing properties. This was demonstrated by cutting it in half and the material melded together after that.

This material is also available as a commercial compound because of its cost-effectiveness. The bonds in between are made longer by tweaking the elastomer molecules. The molecules produced from this can be rebounded at room temperature with similar strength and they can also be easily pulled apart. The University of Illinois is to be credited with the recent findings of self-healing and stretchy paints.

Polyurea has acted as a long-term solution that is used in the coating of narrowboats. Traditionally, bitumen was used but in recent times, polyurea has proven to be more durable. The preferences have changed because a normal coating of bitumen requires to be changed after 3-years, on the other hand just one layer of Polyurea lasts for about 25-30 years.

Thermosetting Plastic Polyurea
https://polymerdatabase.com/img/Urea.png

Vulcanization Thermosetting Plastic



The range of processes that are used to harden rubbers is referred to as Vulcanization. The term originates from an old practice which was exclusively used for treating natural rubber with sulfur. This practice is still widely used and has also expanded to harden other synthetic types of rubbers through different methods.

Two examples of this are the creation of Chloroprene rubber (neoprene) that is made by using metal oxides and Silicone rubber through the process of room temperature vulcanizing. The words ‘vulcanization’ and ‘curing’ are sometimes exchanged because Vulcanizing implies the method of curing elastomers. This material has high rigidity and durability because of the formation of cross-links that lie amidst the sections of a polymer chain.

These cross-links also change the electrical and mechanical properties of the material. Similar to other thermosetting plastic polymers, the process of Vulcanization is also irreversible.

Rubbers and latex had always been a part of Mesoamerican communities, they were used in the making of waterproof containers and balls. Their natural state was rather unstable for the most part and it softened or hardened in various conditions.

A good example to understand this is the rubber tires that were used in the early 19th century that would become sticky when driven on a hot road, this was because the debris stuck to the coating which eventually made it pop.

In the 1830s, Charles Goodyear did his best to improve the workings of those tube tires. Goodyear first heated rubber and tried to create its concoction with other chemicals. This led to the hardening of the materials, but it didn’t happen because of the chemicals but rather the heating. This led to major drawbacks and he declared that his hardening formula never seemed to work appropriately at most times.

However, in 1839, he tried mixing rubber and sulphur and while doing this he accidentally dropped the mixture onto his heated frying pan. He was amazed to see how firm the rubber remained when according to his knowledge it should have melted or vaporized. He kept increasing the heat, only to notice how the material was hardening.

So, Goodyear prioritized working out a system that would consistently harden the rubber and named it Vulcanization about the involvement of heat. The word was taken from the Roman language, where Vulcan is the god of fire and forgery. Charles Goodyear’s hard work paid off and in the same year, he obtained a patent. The rubber made through the process of Vulcanization was produced on an industrial scale from 1844.

The widely popular method of Vulcanizing involves sulphur. Sulphur doesn’t vulcanize synthetic polyolefins, but it is nonetheless a slow vulcanizing agent. Vulcanization with sulphur is accelerated by carrying out the usage of some compounds which modified the kinetics of crosslinking. This is called a cure package. Metal oxides are used to carry out the vulcanization of neoprene or polychloroprene rubber.



Different rules of other diene rubbers determine the acceleration and various processes. Vulcanization of silicones happens at room temperature. It consists of strengthening mineral fillers which react with oil-based polymers. Room-temperature vulcanizing silicones have mainly two types. The first one is RTV-1 which uses One component system and the second is RTV-2 which contains Two-component systems.

Thermosetting Plastic Vulcanization
Image credit: https://ars.els-cdn.com/content/image/3-s2.0-B9780123945846000078-f07-01-9780123945846.jpg?_

Bakelite - Thermosetting Plastic

Polyoxybenzylmethylenglycolanhydride is the complex name of a thermoset material known as Bakelite. This was the first plastic that was used by making synthetic components. Bakelite is formed by a condensed reaction of formaldehyde with phenol; therefore, it is a phenol-formaldehyde resin. It has been named after Leo Baekeland, a Belgian-American chemist who developed Bakelite in Yonkers, New York in the year 1907.

The American Chemical Society paid homage to Bakelite by designating it on November 9, 1993, at National Historic Chemical Landmark. This was done because it is the world’s first synthetic plastic, and its significance must be taken into consideration.

The creator of this material, Mr Leo Baekeland also invented the Velox photographic paper, he did this when he started to examine the reactions of formaldehyde and phenol from his home laboratory. It was around this time that Chemists were aware of most natural fibres and resins being a form of the polymer.

The making of Bakelite involves several stages. It starts with heating formaldehyde and phenol where base ammonia, zinc chloride and hydrochloric acids are used as catalysts. This leads to the formation of ‘Bakelite A’ which is essentially a liquefied condensed product. This can be soluble with acetone, additional phenol and alcohol.

Heating this mixture further can make it partially soluble but heat can still soften it. The cool material tends to become porous and breakable when done at normal atmospheric pressure. This caused foaming but Baekeland managed to suppress it by placing his “last condensation product” inside a “Bakelizer” which resembled an egg.

This material has many important properties. Such as being moulded extremely quickly which also decreases the production time. The mouldings tend to be smooth and they are capable of retaining their shape. They are also resistant to destructive solvents, heat and scratches. Although they are not flexible, they have a great resistance for electricity, so they are generally charged for their property of low conductivity.

These characteristics make it better suited to be used as a moulding compound which, a varnish, protective coating and an adhesive or binding agent. It was first widely accepted in the automobile industries due to its high resistance to heat, chemical actions and electricity. It was first commercially used in the electrical industry for moulding small insulating bushings.

Soon, it was used by companies to build the non-conducting parts of radios, telephones, sockets, light bulbs, electron tubes and other electrical devices. They also replaced ivory in the making of billiard balls because the material looked the same and sounded similar as well.

Bakelite Structure
Image Credits: https://en.wikipedia.org/wiki/Bakelite

Duroplast Thermosetting Plastic



Duroplast is closely related to Bakelite and Formica, it is a composite of the thermosetting plastic. It can be called a resin plastic which contains cotton or wool, which is its reinforced fibre. So, this makes it a fibre-reinforced plastic which is a lot like fibreglass.

The German Democratic Republic state used Duroplast to manufacture their state-owned automobiles. These were the VEB Sachsenring Automobilwerke Zwickau who used this material till the year 1955 and later on they were taken over by the German Reunification by 1991. The outer body of one of a car named Trabant was built by using Duroplast.

The Trabant launched four prominent versions from 1964 to 1990 out of which Trabant 601 was used for the longest period. HQM Sachsenring GmbH became the successor company and even they found this material to be reliable. Duroplast was first used to build the body of the AWZ p70 Zwickau and IFA F8 followed by the Trabant. Apart from this, they also used it to make suitcases.

The material provides light as well as strong build to all its products. The phenol resins, cotton waste and more recycled material is used to create Duroplast. The reason it was preferred by most car production companies in German was that it can be moulded in a way which is similar to steel. This makes it a superior option for the volume of car production in comparison to a material like a fibreglass.

However, like fibreglass, the possibilities of efficient disposal are limited for Duroplast. When old and withered Trabants were filling up the junkyard, people came up with unique ways that would help to dispose of it. A biotechnology company from Berlin came up with one such way. They developed a bacterium by experimenting with it and made it consume the Duroplast body in twenty days. There are also horrible rumours or supposed legends that came from movies like ‘Black Cat, White Cat’ and a song by an atheist rap band that exposed how Duroplast was recycled. It was believed that they fed it to sheep, pigs and other farm animals but this is still a rumour that could never be confirmed.

The Trabant factory situated in Zwickau, Germany came up with a method that would help in the disposal of this material. This solution was found in the late 1990s but it was somewhat effective. So, they shredded the Duroplast shells and used them as an aggregate to build construction material such as pavements and cement blocks. This idea received appraisal for its innovation which solved a problem at hand by implementing it in a useful way. It was featured in one of the episodes ‘Scientific American Frontiers’ programs on the PBS TV Channel of the USA.

December 7, 1909, marks the day when Bakelite was first patented. It was considered as a revolutionary discovery because synthetic plastic was not found in those days. The heat-resistant properties, electrical non-conductivity, usage in radios and telephone cases made it a big market hit. It boosted the supply of diverse products such as jewellery, children’s toys, kitchenware and firearms.

In the contemporary world, the products that were created by using Bakelite have become cherished collectables because they have a vintage and retro appeal.

In the public eye, Duroplast suffered from a degrading image. This was due to the constant jokes and mockery on the usage of this material in Trabants. It became a laughingstock in magazines like ‘Car and Driver’ along with other western auto magazines. This led to the rise of a made-up rumour that Trabant was made up of corrugated cardboard.

Duroplast
Image credits: https://s3files.core77.com/blog/images/1114923_81_103555_eTuYtgniH.jpg

Urea-formaldehyde Thermosetting Plastic

Urea-formaldehyde is a thermosetting plastic resin or polymer which is also non-transparent. It is also referred to as urea-methanal because it has a very common structure along with a synthesis pathway. This material is produced by using formaldehyde and urea. Urea-formaldehyde is largely used in finishes, medium-density fibreboard (MDF), adhesives, particleboard and moulded objects.

This material is also related to amino resins, they belong to a class of thermosetting plastic resins and out of these, urea-formaldehyde manages to make up worldwide production of 80%. The automobile tires which are used to improve the bonding of tire cord and rubber is one such example of this material. Apart from this, the moulding of electrical devices, the usage in paper to improve tear strength and jar caps also use urea-formaldehyde.

The properties and attributes of this material include a high heat-distortion, mould shrinkage and elongation. Apart from this, it also provides high tensile strength, low water absorption, high surface hardness, flexural modulus and volume resistance, Urea-formaldehyde has a refractive index of 1.55.

 [(O)CNHCH2NH is the chemical structure for UF polymers and it consists of repeat units.

The melamine-formaldehyde resin can be used to show contrast with NCH2OCH2N repeat units. The occurrence of branching entirely depends on the polymerization conditions. Bis(hydroxymethyl)urea is produced in the early and reactive stage of urea and formaldehyde.

On a global scale, approximately 20 million metric tons of this material is produced every single year.

The forest industry uses about 70% of Urea-formaldehyde products. This is particularly used by them for MDF, laminating adhesive, bonding particleboard and hardwood plywood.

The general uses of this polymer are common in textiles, wrinkle-resistant fabrics, rayon, decorative laminates, foundry sand moulds and corduroy. In addition to all that, even wood glue contains urea-formaldehyde. It is also widely used in the production of desk lamps and similar electrical appliances casing. The snow that you see in movies is also produced from urea-formaldehyde.

It also acts as an excellent source of slow-releasing nitrogen. The rate of its decomposition that becomes Carbon dioxide and Ammonia is decided by how the microbes which are naturally found in most soils would act. The temperature usually determines at what rate ammonia will be released and how microbes shall act. If the temperature is around 70–90 °F (21–32 °C), then urea-formaldehyde becomes ideal for using in the agricultural sector.

UFFI or the urea-formaldehyde foam insulation can be traced back to the early 1930s, tR values up to 5.0 per inch were used to make synthetic insulations. It is a foam that can be easily pumped and injected into walls. The texture of this foam resembles shaving cream. The areas that require insulation are pumped with completely expanded foam.

The foam cures in a week but it becomes fully firm in a few minutes. In the houses that were built before the 1970s, especially the crawl spaces, unfinished attics, attics and basements, UFFI is commonly found. It gradually looks like the colour of butterscotch, although it will look yellow when you apply it. The earlier versions of UFFI were high in shrinkage. The modern ones have however worked on this problem and reduced the shrinkage by 2% to 4%.

Urea Formaldehyde
Image Credits: https://polymerdatabase.com/img/UF.png

Melamine Resin Thermosetting Plastic

The resin which consists of melamine rings that are terminated with multiple hydroxyl groups extracted from formaldehyde is known as Melamine Resin or even Melamine formaldehyde. It is a thermosetting plastic which has been made from formaldehyde and melamine. It is dissolved in xylene and n-butanol in its butylated form.

After that, this is used to create cross-links between epoxy, polyester resins, alkyd, acrylic and surface coatings. It is built to produce various forms by using very slow as well as very fast curing. Melamine Resin was first discovered by William F. Talbot. On December 12, 1936, he applied for its patent.

The curing process for melamine-formaldehyde can occur by heating, this induces crosslinking and dehydration. The procedure of crosslinking can only be carried out to a certain extent if the aim is to produce resins. The monomers, melamine-formaldehyde monomer and melamine-formaldehyde resin can be treated by the usage of several polyols to undergo curing.

The Hexa-hydroxymethyl derivative is formed under ideal conditions. This happens when condensed formaldehyde is used with melamine to create Melamine-formaldehyde resin. This and other hydroxymethylated species tend to undergo more condensation and crosslinking after they are heated in the presence of an acid. These linkages between the heterocycles have polyethers, monopolyethers and polyethers.

NMR spectroscopy is used for analyzing the microstructure of this material. Bifunctional analogues of melamine with co-condensation such as acetoguanamine and benzoguanamine are used to control the crosslinking density in melamine resins.

Melamine resin is widely used for construction material. This includes laminates for flooring and high-pressure laminates, such as Arborite and Formica. It is also a base material for the creation of whiteboards. This material is used to build overlay materials as well as plastic laminates. In melamine-formaldehyde, the formaldehyde is more tightly bound in comparison to urea-formaldehyde. This helps with the reduction of emissions.

Apart from that, melamine resin is also a part of our daily commodities such as kitchenware. It is mostly used in the creation of plates and utensils. However, these utensils, plates and bowls can never be used for heating food inside a microwave. In the late 1950s and 1960s, the tableware built from melamine was trending and became fashionable.

Even the solidified and dominant position of ceramic was threatened in the market when A.H. Woodful of British Industrial plastics launched a stylish collection with the assistance of their product design unit. This booming period ended around the late 1960s because the sales declined. This happened because people no longer wanted to tolerate the stains and scratches on their utensils when they had much better options. Gradually, melamine was only used to build material related to the nursing market and camping.

This material is often used in the creation of ready-to-assemble furniture and kitchen cabinets. The saturated decorative paper derived from this is first laminated under pressure and heat. It is later pasted on the particleboard. The resultant is a panel called melamine. It is available in the market at diverse thicknesses, sizes, patterns and colours. The sheet should not be cut with a conventional table saw because that makes the resin more prone to chipping.

Thermosetting Plastic Melamine
Image credits: https://www.sigmaaldrich.com/content/dam/sigma-aldrich/structure5/124/mfcd00197912.eps/_jcr_content/renditions/mfcd00197912-large.png

Epoxy Resin Thermosetting Plastic

Epoxy resin is the name for the epoxide functional group, but it also refers to the cured end products and basic components of epoxy resins. Polyepoxide is another name for this class of material which belongs to reactive polymers and prepolymers that include epoxide groups. The crosslinking in Epoxy resins takes place by either the reaction with itself and a catalytic homopolymerization or other wide range of co-reactants. These co-reactants are namely acids, alcohols, thiols, polyfunctional amines and phenols. These act as curatives and hardeners; this crosslinking reaction is called curing.

Polyepoxides react with themselves or with a polyfunctional hardener that forms a thermosetting plastic polymer. This favours chemical resistance and high thermal and mechanical properties. There are numerous applications of Epoxy, these include use in electrical components, paintbrush manufacturing, adhesives for structural purposes, metal coatings, high tension electrical insulator and fibre-reinforced plastic material.

Paul Schlack from Germany was the one who condensed amines and epoxides. This was first reported and patented in 1934. A Swiss chemist named Pierre Castan claimed that he discovered bisphenol-A which was based on epoxy resins. His work was later licensed by a chemical company in Switzerland known as Ciba, Ltd. This later became a major producer worldwide along with two other companies.

The Vantico that was sold subsequently in 2003 and turned into one of the most advanced material business units for a company that manufactured chemical products known as Huntsman Corporation. This led to a spin-off in Ciba’s epoxy business around the late 1990s. A worker called Sylvan Greenie from the Deboe and Raynolds company first bought the patent for epichlorohydrin and bisphenol-A.

Dozens of chemicals can be used to cure epoxy. These include Anhydrides, Amines, Imidazoles and photosensitive chemicals. The epoxy resins that are never cured generally have poor heat resistance and chemical properties. The cured epoxy resin which reacts with three-dimensional cross-linked thermoset structures which are most suitable contains numerous good properties.

Glycidyl based epoxy resin is the term for the epoxy resins which are derived from curing epoxy monomers. Another method to convert epoxy resin is through cycloaliphatic alkenes or aliphatic with peracids. In comparison to epoxy resins that are glycidyl-based, an acidic hydrogen atom is not required for its production. It uses an aliphatic double bond, and this epoxide group is called an oxirane group. Adding small amounts of accelerator helps the epoxy curing reaction to happen faster. Some effective accelerators are carboxylic acids, alcohol and tertiary amines.

Epoxy-based material is extensively used in a plethora of things such as adhesives, coatings and composite material. These include the ones using fibreglass and carbon fibre reinforcements. A wide variety of products can be produced by epoxies because of its chemistry and commercial availability.

Epoxies are generally known for being heat and chemical resistant, good electric insulators, excellent adhesives and great mechanical properties. These properties can also be modified. There are also variations available that offer thermal conductivity which has high resistance for electricity and high thermal insulation. The other classes of thermoset polymer materials are blended with different types of epoxy resin.

The usage of plasticizers, fillers and additives is also common to use. This is mostly done to achieve a desirable process or ultimate properties that would reduce the pricing. The process of using such substances to get the desired results is known as formulating.

Bisphenol
Image Credits: http://polymerdatabase.com/img2/DGEB%20Epoxy.png

Benzoxazine Thermosetting Plastic

This is a type of chemical compound which is bicyclic heterocyclic. It contains nitrogen as well as oxygen inside a six-member ring which is unsaturated, and a benzene ring is fused with it. This is commonly referred to as a monomer, even the monomers which are their cured polymerized products can be called polybenzoxazine or benzoxazine resins.

The Benzoxazines are bicyclic heterocyclic in nature because they contain one nitrogen and one oxygen atom in a 1,3-oxazine ring which is an unsaturated six-member ring that is fused with a benzene ring. 3,4-dihydro-3-phenyl-2H-1,3-benzoxazines is the systematic benzoxazine name given to the unsubstituted monomer. The condensing reaction that happens between a phenol, formaldehyde and amine which produces thermosetting plastic polymers or thermoset resins is responsible for the production of Benzoxazine.

There is a lot of diversity of benzoxazines available in the market because the cost of materials such as phenols, amines and formaldehyde are extremely low. In addition to that, the preparation of Benzoxazine is quite simple because it only requires a one-pot reaction. This one-pot reaction ensures and implements a strategy that increases the efficiency of the chemical reaction.

So, the primary reactant is only exposed to the successive reactors of the chemical chain in just one reactor. This process is desirable because it reduces the effort of separating substances and purifying them and it is usually preferred by chemists whenever there is a possibility of implementing it.

The benzoxazines that are derived using substitute phenols have made numerous researchers focus on the properties of polymer-like cross-linking and even the different temperatures that are ideal for curing. The preparation of Benzoxazines can be done by heating formaldehyde, a phenol and an aromatic amine in a one-pot process. An alternate way would be to prepare these sequentially. The process of curing a benzoxazine happens with or without a catalyst by thermal ring-opening polymerisation. This material can also yield rigid material if it is homopolymerized. The properties of benzoxazines can also be tuned if we copolymerize it with other monomers.

A high molecular weighing thermoset polymer matrix is formed after heating benzoxazine. They take an effort to outdo epoxy and phenolic resins by using composites that enhance their fire and flame resistance along with mechanical performances. They fall under the category of high-performing and halogen-free polymers.

The primary application of polybenzoxazine lies in adhesives and fibre-reinforced plastic. These are suitable for bismaleimide resins, epoxy and phenolic. They tend to have low levels of flammability, a great amount of heath stability and an increased resistance for chemicals. They are generally used as components that can be exposed to corrosive media and high temperatures.

These include heat resistant coatings, prepregs, halogen-free laminates used in printed circuit boards, chemicals and adhesives. In the aerospace and automotive industries, the applications of polybenzoxazine are higher because they have superior mechanical and thermal properties. This is more advantageous than the resins which are used conventionally.



More advantages of Benzoxazine are that it does not have a volatile organic compound releasing while curing. The Verbosities are low, and the shrinkage is nearly zero. It can also be stored in room temperature. The material also has good amounts of hydrophobicity and chemical resistance with ideal electrical properties.

Thermosetting Plastic Benzoxazine
Image credits: https://pubchem.ncbi.nlm.nih.gov/image/imgsrv.fcgi?cid=17845026&t=l

Polyimide Thermosetting Plastic



The material Polyimide can be abbreviated to Pl. It belongs to the class of high-performance plastics. Polyimide is considered to be a polymer of imide monomers. It has diverse applications in industries that demand rugged organic materials for displays military roles and high-temperature fuel cells due to its high heat-resistance. Kapton is one of the classic polyimides that is produced by the method of condensing 4,4’-oxydianiline and pyromellitic dianhydride.

Bogart and Renshaw discovered the first polymer in 1908. They observed that a substance called 4-amino phthalic anhydride cannot be melted when it is exposed to heat, but the formation of a high molecular weighing polyimide makes it release water. Edward and Robinson were the first to prepare semi aliphatic polyimide by melting fusions of tetra acids or diamines and diacids. Even then, Kapton was the first significant polyimide with commercial importance.

The workers of Dupont had pioneered it by the 1950s and they developed a way to synthesise high molecular weight polyamide which also had soluble polymer precursors. Even today this route has continued to be the main one for producing most polyimides. Since 1955, this material has been under mass production. Most books and review articles have covered the subject of polyimides extensively.

The composition of polyimides makes them semi-aromatic or alipharomatic, aliphatic and aromatic. The thermostability of polyimides is what makes them apt to be used in this manner. The interactions of polyimides and main chains make them thermoplastic and thermoset. This increases their commercial availability as uncured resins, stock shapes, laminates, polyimide solutions, thin sheets and machined parts.

The preparation of polyimides can happen through several methods. These include a reaction between diamine and dianhydride which is the most popularly used method. Another method of preparing polyimides is a reaction that takes place between dianhydride and diisocyanate. The method of polymerizing dianhydride and diamine is a two-step process where poly (amid acid) is first created by the usage of a one-step method.

The preparation of polyimides can happen through several methods. These include a reaction between diamine and dianhydride which is the most popularly used method. Another method of preparing polyimides is a reaction that takes place between dianhydride and diisocyanate. The method of polymerizing dianhydride and diamine is a two-step process where poly (amid acid) is first created by the usage of a one-step method.

Materials such as pyromellitic dianhydride, naphthalene tetracarboxylic dianhydride and benzoquinone tetracarboxylic dianhydride are used as precursors to create Dianhydrides. The building blocks of common diamine have meta-phenylenediamine, 3,3-diaminodiphenylmethane and 4,4–diamino diphenyl ether. The tuning of processing and physical properties of these materials is only initiated after hundreds of dianhydrides and diamines are examined. Their nature tends to arise from charged and transferred interactions of planar subunits. They are also insoluble with a high softening temperature.

There are various applications of polyimide material because they are flexible, heat resistant, lightweight and chemical resistant. This puts them in high demand by the electronics industry because it enables them to make cables which are flexible as an insulating film wrapped round magnet wire. The cables used in a laptop computer connect the display with the main logic board so it must be flexible since you keep opening and closing the laptop. These cables are built with polyimide where the copper conductor is used and that makes it a great example for grasping the usage of Polyimide.

Thermosetting Plastic Polyamides
Image Credits: http://www.leck.co.uk/demo/eci3/images/stories/560_Polyamides/Polyamides_02.JPG

Maleimide Thermosetting Plastic



The formula for Maleimide is H2C2(CO)2NH and it is a chemical compound. This material happens to be an important factor in building organic synthesis, it is also a form of unsaturated imide. The name Maleimide is derived from the two words maleic acid and imide. They belong to the -C(O)NHC(O)- functional group. A maleic acid is a form of dicarboxylic acid which is a molecule of two carboxyl groups. This organic compound is the cis-isomer of butanediol acid.

An imide belongs to the functional group with two acyl groups that are bonded to nitrogen. Even though imide is more resistant to hydrolysis, its compound structure relates to acid anhydrides. They are known as one of the best components that can be used in high-strength polymers like polyimides. Maleimides represents the class of derivatives of its parent maleimide. Here, the group NH gets replaced with aryl or alkyl groups such as a phenyl or methyl respectively.

A small molecule like Biotin, oligosaccharide, a fluorescent dye and nucleic acid can also act as a substituent. It could also be replaced by a synthetic polymer such as polyethylene glycol and a reactive group. A blood substitute can also be created by chemically modifying human haemoglobin with maleimide-polyethylene glycol which is called MP4.

Maleimide and all its derivatives are made using amines anhydride by treating it with amines and then dehydrating the substance. A unique feature of the maleimides is their reactivity which is susceptible to double bonds by additions. This could be achieved by the reaction of either Diels-Alder or Michael additions.

The class of compounds that has two maleimide groups which are connected through the atoms of nitrogen is known as Bismaleimides. This is done through thermoset polymer chemistry which uses crosslinking reagents. Maleimide heterobifunctional reagents is a compound that contains a group linked maleimide with other reactive groups like activated N-hydroxysuccinimide ester. A good example of this is SMCC reagent.

Only a few natural maleimides have been reported and exemplified by the pencolide from multicolour and cytotoxic from showdomycin. In 2009, Farinomalein was the first natural maleimide that was isolated from the entomopathogenic fungus. Maleimide is used in Biotechnology and Pharmaceutics. Bioconjugation mostly uses the maleimide-meditated methodologies. There is high selectivity due to fast reaction rates.

The residues in proteins and other varieties of maleimide heterobifunctional reagents use these for preparing assemblies that study protein in a biological context, targeting therapeutics, protein immobilisation and protein-based microarrays. The emerging and promising drug therapies and antibody-drug conjugates consist of three main components. These are a cytotoxic drug, a monoclonal antibody and a linker molecule which contains a maleimide group binding the antibody and drug.

Maleimide also has technological applications. Bismaleimide-based and Mono polymers are preferred for the usage of high-temperature applications that go up to 250-degree celsius. The reinforcement of rubber tires happens through maleimides that are linked with rubber chains which can be used as flexible linking molecules. A UD fighter plane is made from bismaleimide material and it also uses the thermoset polymer matrix composite.

Maleimide
Image Credits: https://www.sigmaaldrich.com/catalog/product/aldrich/129585?lang=en&region=IN

Cyanate Ester Thermosetting Plastic



When a cyanide group substitutes a hydrogen atom that belongs to the OH group a chemical substance known as Cyanate esters is formed. A cyanide group consists of a triple bond between a carbon atom and a nitrogen atom. It belongs to the cyano group. The resultant of these two substances is a product that belongs to the -OCN group.

In the production of resins, the cyanate esters which are based on novolac or bisphenol derivatives are commonly used. A group of chemical compounds that contains two hydroxyphenyl functionalities is known as bisphenols. It is typically based on diphenylmethane but the S, P and M bisphenol are an exception where every letter represents a reaction.

Cyanate esters can be post-cured and cured by heating. It can either be alone at a higher temperature or a lower temperature, but a fitting catalyst must be present with it. Some of the common catalysts include copper, zinc, metal complexes of cobalt and zinc. This creates a material that has a low dielectric constant and an exceptional glass-transition temperature.

A glass transition translates to a reversible and gradual transition to an amorphous material made from a brittle glass substance which transformed into a rubbery state after the temperature was increased. On the other hand, a dielectric constant refers to the absolute permittivity expressed by a material as a ratio which is relative to vacuum permittivity.

The curing procedure also ensures that the material provides very good fire, exemplary printed circuit boards that are installed in critical electronic devices, noteworthy thermal stability for long term with plus toxicity and smoke performance.

As mentioned earlier, Cyanate Ester is used in printed circuit boards (PCB) which electronically connects conductive tracks using electrical components and mechanical support. The pads and tracks are other features which are etched on the copper laminated sheet layer of a non-conductive substrate. It is implemented in such products because it has a low moisture uptake. This also makes it a much valuable component for aerospace application than epoxies because it has a higher level of toughness.

Cyanate ester was once used as a primary component in the build of the Lynx Mark II spaceplane.

A trimerization consisting of three CN groups and a triazine ring is the chemical reaction of curing. A trimer refers to an anion or a molecule which is formed by the association or combination of ions or three molecules that belong to the same substance. A trimer is usually a competitor of polymerization and it resembles an oligomer which has been derived from three identical precursors.

A 3 three-dimensional polymer network is formed when a monomer consists of two cyanate groups.

The substituents present in the bisphenol compound determine the properties of a thermoset polymer matrix. The major products are novolac based cyanate esters and Bisphenol-A. However, bisphenol E and bisphenol F are also used. The toughness of the material can be improved if the aromatic ring in the bisphenol can be replaced with an allylic group. Cyanate esters can be mixed with epoxy resins for optimization of its end-use properties and with bismaleimides for forming BT-resins.

Furan Thermosetting Plastic



The heterocyclic organic compound that consists of a five-membered aromatic ring of one oxygen and four carbon atoms are known as Furan. Even chemical compounds that constitute such rings can be referred to as Furans. They are flammable, colorless, and have a highly volatile liquid but they are always close to room temperature. It can be mixed with solvents that are common and organic such as ether, acetone, and alcohol which are slightly more soluble in water. An ethereal and strong odor that resembles chloroform is released. This makes it carcinogenic and toxic to humans. Mostly, furan is used in specialty chemicals as a starting point.

The name Furan was derived from the Latin word ‘furfur’ which translates to bran (the harder outer layer of cereal grain). The organic compound known as Furfural is produced by using bran. Carl Wilhelm Scheele describes the first furan derivative as 2-furoic acid in 1780. Johann Wolfgang Dobereiner reported one more important derivative in 1832 but it was only characterized by John Stenhouse, nine years later. Heinrich Limpricht was the one who initially prepared Furqan in 1870. However, he called it tetraphenyl.



The industrial version of furan is created by 1,3-butadiene copper-catalyzed oxidation and furfural’s palladium-catalyzed decarbonylation. The oxidation to 2-furoic acid is ended by the process of decarboxylation to obtain the laboratory quality of Furan.

Furan can also be made directly through pentose-containing, pinewood, and cellulosic solids.

A classic way to synthesize furan is Feist-Benary Synthesis even though we have developed many syntheses. The reaction of phosphorus pentoxide with 1,4-diketones in the Paal-Knorr synthesis is one of the simplest methods for the synthesis of furans. The reaction of Lawesson’s reagent with 1,4-diketones forms thiophene which is used to form side products from Furan. The synthesis of substituted furans has led to the formation of many routes.

Furan is a lone pair of one of the electrons that are delocalized into the ring, it is present on an oxygen atom. This creates a formation that resembles benzene with a 4n+2 aromatic system.

The molecule has a flat structure and lacks discrete double bonds because of its aromaticity. In the flat ring system, an oxygen atom extends in the plane which is the other lone pair of electrons. One of the lone pairs of oxygen which is situated in a p orbital can do so through sp2 hybridization which allows it to interact inside the π system.

The aromaticity makes furan’s behaviour a little different due to its tetrahydrofuran and Ethers which are more typical. Furan is produced through the process of thermal degradation of natural food and it is used to heat-treat commercial foods.

We can find it in instant coffee, processed baby food, and roasted coffee as well. According to research, the coffee made from capsules and the one made in espresso makers have more furan than drip coffee makers which are used traditionally. However, it is still not harmful to health because the levels are safe. In addition to that, Furan might be a human carcinogen.

Furan
Credit: https://www.researchgate.net/profile/Luiz_Cheim/publication/254062971/figure/fig2/AS:630149464748032@1527250748001/The-chemical-structures-of-furan-compounds.png

Silicone Thermosetting Plastic



The polymers which are made up of siloxane (−R2Si−O−SiR2−, where R = organic group) are known as silicone or polysiloxane. They are oils and rubber-like substances that are mostly colourless. Silicones are used in adhesives, medicine, sealants, lubricants, thermal and electric insulation. Silicone grease, silicone resin, silicone oil, silicone rubber, and silicone caulk are some of its common forms.

The word silicone was first coined by F. S. Kipping to describe its formula of polydiphenylsiloxane. He was aware that the formula is polymeric, and benzophenone is monomeric and natural. He noted the contrast of properties of Ph2CO and Ph2Si. Siloxane is the proper term as per the nomenclature of modern chemistry.

This was established after the structural difference that was discovered between ketones and Kipping’s molecules.



Silicon and Silicone are two different substances, but they are often confused. The substance with compounds that contain oxygen, carbon, silicon, hydrogen, and some forms of atoms that have different chemical properties is known as Silicones. On the other hand, Silicon is a chemical element that is used to make integrated circuits in its crystallized form. And it is a semiconducting metalloid that looks hard and dark grey.

Silanones which should be called silicone are compounds that contain double bonds of silicon and oxygen. They have been identified as intermediates for a long time that are still in their gas-phase.

These are present in microelectronic production as chemical vapor deposition and in the process of combustion through the formation of ceramics. These are highly likely to be polymerized into siloxanes. A. Filippou was the first one to obtain stable silicone in 2014.

The materials derived by hydrolysis of dimethyldichlorosilane are known as polydimethylsiloxane which is most commonly used. When it comes to consumer applications, caulks silyl acetates are more preferable than silyl chlorides. The less dangerous acetic acid is produced by the hydrolysis of acetates.

The much slower curing process is responsible for this reaction product. This chemistry is implemented in a lot of consumer applications, such as adhesives, caulk, and silicones.

Crosslinks or branches of the polymer chain are introduced through organosilicon precursors that have fewer alkyl groups like methyltrimethoxysilane, trichlorosilane, and methyl. A branch point is each molecule of these compounds. Silicone resins that are hard can be produced through this process. In a silicone chain, each molecule has only one reactive site form so to limit molecular weight, one can use the precursors with three methyl groups.

Silicones are low in thermal conductivity. They are also low in toxicity and chemical reactivity.

They do not always attach to many substrates but can act as a great adhesive to substances such as glass. They also do not support microbiological growth. They are resistant to ozone, ultraviolet rays and oxygen which has increased their usage in the construction sector. It also has electrical insulation properties which makes it useful for a variety of electrical applications. Its high gas permeability makes it useful in the medical sector where an increased amount of aeration is considered ideal.

Silicone
Image Credits: https://polymerdatabase.com/img/Silicone.png

Vinyl Ester Resin Thermosetting Plastic



The resin produced with methacrylic acids or acrylic with the esterification of an epoxy resin is known as Vinyl Ester Resin. Acrylic acid is an organic compound. It consists of a vinyl group that is connected to the carboxylic acid and it is also one of the simplest unsaturated carboxylic acids. The liquid is colorless with a tart or acetic smell. Methacrylic acid is abbreviated to MAA which is also an organic compound. It has an acrid unpleasant odor with a colorless and viscous liquid.

It is a carboxylic acid that is miscible with most organic solvents and also soluble in warm water. AS a precursor to its ester, methacrylic acid is produced on a large scale for industrial use.

The Vinyl group is prone to becoming polymerized and refers to ester substituents. The diester product is mixed with styrene, a reactive solvent to content by weight at approximately 35-45 per cent. Styrene is also an organic compound and is a derivative of benzene. This is a colourless and oily liquid, but its aged samples are sometimes yellowish in colour. This compound has a sweet smell, and it evaporates rather quickly. However, when styrene is highly concentrated the odour becomes less pleasant.

Free radicals initiate the process of polymerization that is generated by peroxides or ultraviolet radiation. A molecule, ion, or atom with an unpaired valence electron is known as a free radical in chemistry. These unpaired electrons are responsible for highly chemically reactive radicals but there are some exceptions.

Many of these radicals can spontaneously dimerize and the life span of an organic radical is mostly short.  This thermoset material can be used to replace epoxy and polyester material. Inside the composite material is the thermoset polymer matrix where it is characterized by bulk costs that are intermediate between epoxy and polyester as well as its strength.

Composite materials are produced with two or more constituent materials. This constituent material has obvious indistinct physical and chemical properties. These properties are merged to build a material that is different from the individual elements. Vinyl ester has lower epoxy and resin viscosity.

Glastar and Glastar kit planes which are homebuilt aeroplanes extensively used fibreglass-reinforced structures. It is a widely used resin in the marine industry because it can withstand water absorption and is also resistant to corrosion.

According to BS4994, Fibre-reinforced plastic (FRP) tanks use high amounts of Vinyl ester resin. Fibre-reinforced plastic (FRP) is used in the construction of chemical plant equipment and it is a modern composite material used for the construction of similar chemical plant equipment.

The chemical equipment is fabricated by the use of Fibre-reinforced plastic (FRP) material (A polymer composite that is mixed with glass or other fibers in order to strengthen the structure.), but they range in size from 20 meters to less than a meter. This substance is often initiated with methyl ethyl ketone peroxide for the laminating process. It is not as apt as epoxy resin, but it has greater mechanical properties and strength than polyester. There is also the development of renewable precursors to vinyl ester resin. This substance is used in laminating and repairing material because it tends to be reliable as well as waterproof.

FRP
image credits: https://polymerdatabase.com/img/VER.png

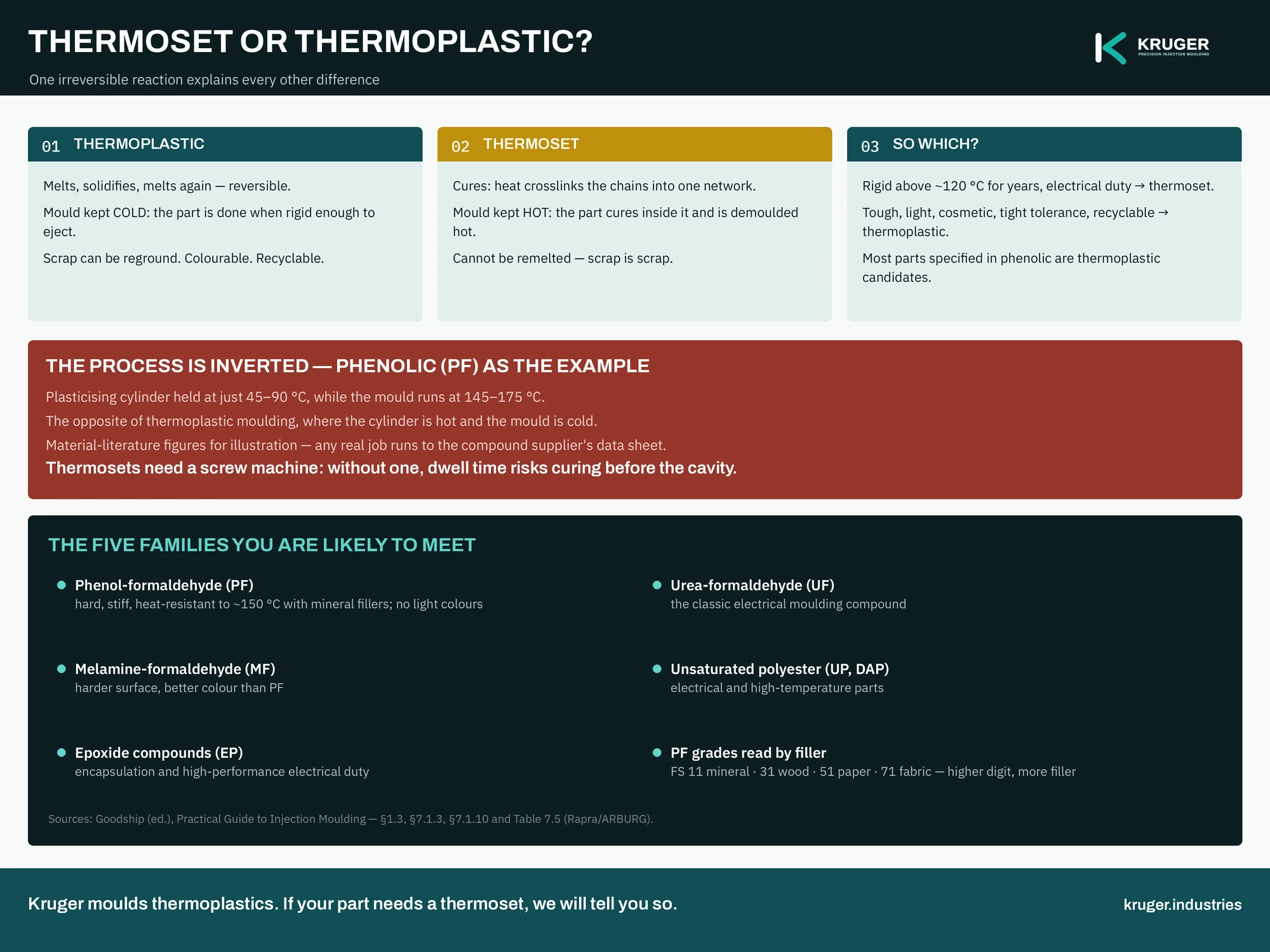

Properties of Thermosetting Plastic Polymers



Thermosetting plastics tend to be stronger than thermoplastic because they have a three-dimensional network of bonds, also known as crosslinking. This material is also ideal for high-temperature usage until it reaches the decomposition temperature because till ten, the temperature withholds its shape. This is because the covalent bonds that formed between polymer chains are not easily breakable.

The higher the aromatic content and crosslink density of a polymer, the higher resistance it has to chemical attack and heat degradation. Even though the brittleness of the material is compromised, the hardness and mechanical strength are increased through crosslink density. Normally, these tend to decompose before they melt.

When put under pressure or load, plastic and hard thermosets go under a plastic or permanent deformation. Elastomers, which are springy and sofas well as rubbery, can be reverted and deformed to their natural shape on loading release.



After curing, common elastomers usually only recycle as filler material; otherwise, their recycling process is avoided for the same purpose. Recent developments that include thermoset epoxy resins are contained, and controlled heating from crosslinked networks allow repeated reshaping, such as silica glass by covalent bond exchange reactions that are reversible. This happens after reheating over the glass transition temperature.



However, there are substances known as thermoset polyurethanes that have been demonstrated transient properties that can be recycled or reprocessed.
