Introduction to Polymer Blends

A polymer blend combines two or more polymers mixed to form a new material with different physical properties.

There are five major polymer blend types:

  • Thermoplastic-thermoplastic blends
  • Thermoplastic-rubber blends
  • Thermoplastic-thermosetting blends
  • Rubber-thermosetting blends
  • Polymer filler blends

As a simple and cost-effective method of producing polymeric materials with flexibility for industrial applications, polymer blending has attracted great interest. By correctly choosing the component polymers, one can manipulate the blends’ properties according to their final usage. It is also possible to minimize the time for commercialization to maybe two to three years using a polymer blending process, which is often very inexpensive to run.

The development of polymer blends constitutes half -of all plastics as part of the substitution of conventional polymers. Modern blending technology can also significantly expand polymer blends’ performance capabilities. Growing consumer demand now specifies that polymer blends must perform mechanical, chemical, thermal, electrical, electrical, electrical, and specific conditions for specific applications.

Polymer Blends
https://image.slideserve.com/828443/polymer-blend-l.jpg

Advantages of polymer blends

Quite a few actually!

● Offering products at the lowest price with the maximum range of desired properties.
● Expanding the performance of engineering resins.
● Improving specific properties, viz. impact strength or solvent resistance.
● Establishing the means for the disposal of industrial and municipal plastic waste

Blending is also advantageous to the producer by providing

(i) Improved processability, product uniformity, and elimination of scrap.
(ii) Fast changes in formulation.
(iii) Flexibility for plants and high efficiency.
(iv) Reduction in the number of grades to be produced and processed
(v) Recyclability intrinsic, etc.

Type of polymer blends

types of polymer blends

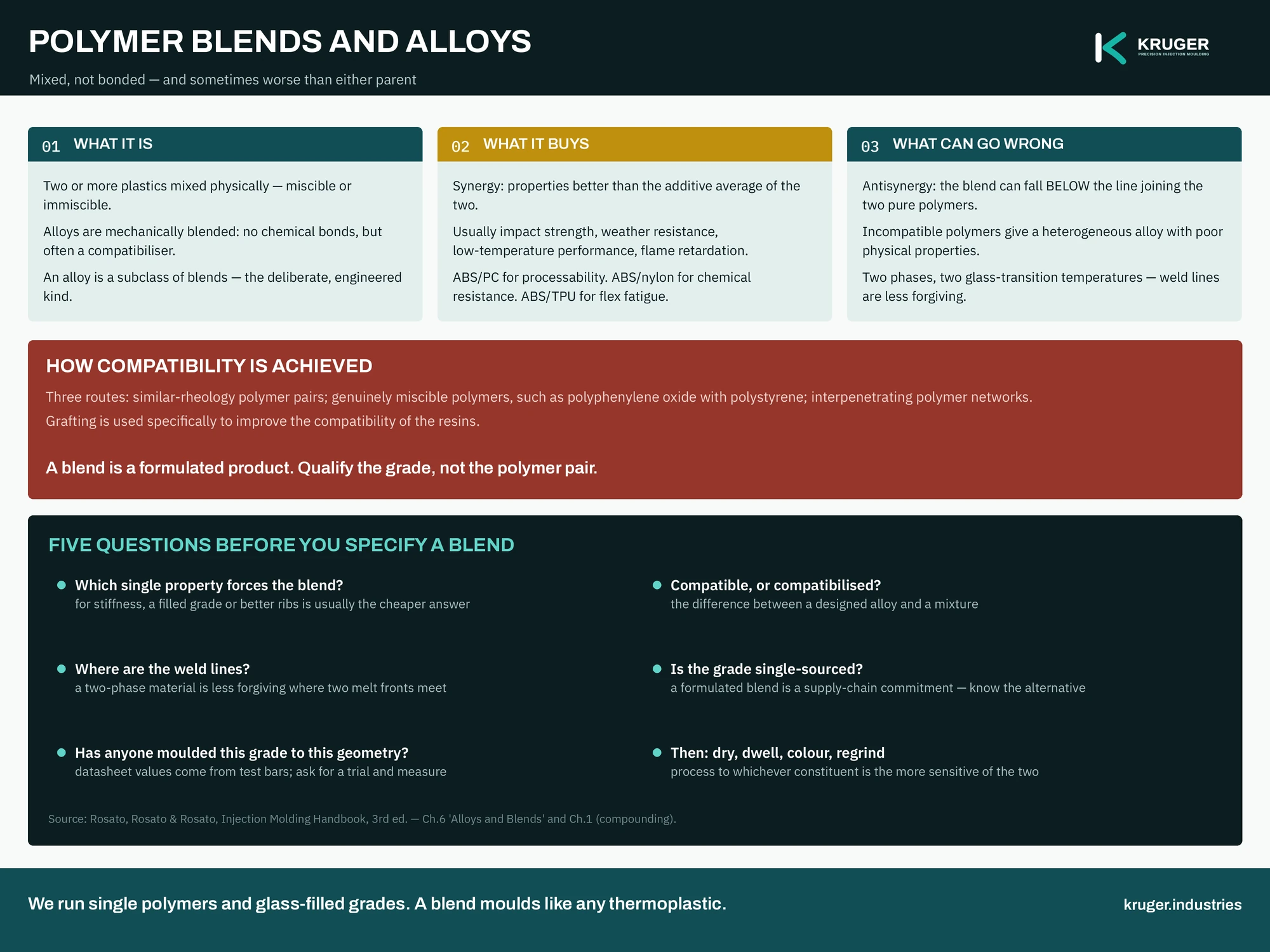

Difference between polymer blends and alloys

  • Polymer blend: The polymer blend combines two or more polymers and copolymers comprising at least 2 per cent of the dispersed phase by weight.
  • Polymer alloy: The polymer alloy, with changed interphase and morphology, is an immiscible, compatible blend.



By mixing or alloying two or more polymers, one can greatly change the properties of several plastics. The terms alloys and blends are often used interchangeably, but technically, blends are not fully compatible mixtures, and alloys are fully compatible mixtures. A particular subclass of the polymer blend is a polymer alloy; practically all high-performance engineering blends are alloys.

Characterization of polymer blends miscibility morphology and interfaces

Miscible polymer blends & immiscible polymer blends



Polymer blends are usually categorized into either homogeneous (molecularly mixable) or heterogeneous (immiscible) polymer blends. Poly(styrene) (PS)-poly (phenylene oxide) (PPO) and poly(styrene-acrylonitrile) (SAN)-poly (methyl methacrylate) (PMMA) are miscible blends, for instance, while poly(propylene) (PP)-PS and poly(propylene)-poly(ethylene) (PE) are immiscible blends. Miscible blends (single-phase) are usually optically transparent and homogeneous to the segmental level of the polymer. Single-phase blends often undergo phase separation, typically caused by temperature, heat, or mixture composition variations. Mixtures of polymers may be fully miscible, partly miscible, or immiscible. Hydrogen bonding, dipole-dipole, and ionic interactions are the most common unique interactions found in polymer blends.

Specific interactions and the miscibility of polymer blends

There are two major types of polymer blends that can be differentiated by their phase behavior, which is A key factor in evaluating their physical properties. Consequently, their efficiency is the phase behavior of multicomponent polymeric materials.



 Phase morphology (size and shape) and the interface design (wetting and adhesion) between phases are the main issues for systems forming separate phases-Miscible and immiscible polymer blends. In miscible blends, on a molecular basis, the various polymers’ chain segments are soluble. One single glass transition temperature is shown in these blends, which depends on the blends’ composition. The most significant example of miscible blends is known to be Poly (phenylene ether) (PPE)/Polystyrene (PS) blends.

With the change in PPE and PS ratio, one could create an infinite number of materials with different properties.

Owing to the low contribution of the mixing entropy to the free energy of mixing, the largest polymer blends category is immiscible polymer blends. Immiscible polymer blends present a fully phase-separated structure, displaying each blend component’s glass transition temperatures.

The majority of commercial polymer blends are immiscible polymer blends, as immiscibility enables each of the base polymer components’ good characteristics to be retained.

The challenge is to establish processes or methods that enable both the morphology and interfaces of phase-separated blends to be managed. It is important to consider the following inherent problems of immiscible blends. The weak interfacial adhesion between two phases of the polymer.

The interfaces in immiscible polymer blends are fragile, and the interfaces would most likely fail before the base polymer components when they are subjected to external stress.

Properties of polymer blends - Instability of immiscible polymer blends

An immiscible polymer blend is unstable thermodynamically. The state of both thermodynamics (interfacial tension) and mechanical mixing regulate one phase’s dispersion into another. The interfacial stress dominates the evolution of morphology when external mechanical mixing ceases. Each stage’s convergence will minimize the total interfacial areas and thus the system’s total interfacial energy.



The instability of such phase-separated polymer blends is that its morphology develops when the conditions it is exposed to vary. For instance, the morphology of an immiscible polymer blend obtained from an extruder can vary from that which is later molded by injection.

Methods of polymer blending

Polymer blending techniques

For the preparation of polymer blends, five different methods are used:

  • Melt blending
  • Solution blending of polymers
  • Latex mixing
  • Partial block or graft copolymerization
  • Preparation of interpenetrating polymer networks (IPN)

Preparation of polymer blends

Melt blending process

Heterogeneous impurities may migrate across the interface between both blending phases during the melt-mixing process. The interfacial free energy of the impurity present regarding its melt process is the driving force for this migration.

Suppose this free interfacial energy is greater than the free interfacial energy of another polymer thereof, Under the second melt step. In that case, the impurity is energetically more suitable for moving to the second phase. It will migrate across the interface. During the melt-mixing process, multiple variables decide the ‘opportunity’ for the impurities to move from one phase to the other phase.

The migration of heterogeneities can occur only when they are close to each other, adequate for the interface. Melt-mixing conditions play a significant role. Also, the impurities’ potential to be placed near enough to an interface is directly related to the phase morphology produced during the melt-mixing process.

Solution blending

The most widely used approach for applying alternative properties or functions to the core material is possibly solution blending. This technique involves combining two parts in a solution followed by electrospinning, in which electro spinnability only needs to be a one-part solution.

Three potential solution blending scenarios are widely encountered; the first scenario is that the mixing materials are soluble in a common solvent. The second is that both materials are dissolved with no common solvent. The third is insoluble with one substance.

In solution and electrospun to form fibers, colloids where one component is non-soluble, such as carbon nanotubes, silica particles, hydroxyapatite, are suspended. Polymers and soluble salts are other more widely introduced products.

Blending agents in polymer

Latex blending

Traditionally, latex blending has been the preferred method of mixing. Via latex blending with PVAc, the first proprietary PVC alloys were prepared and Poly (Co-vinyl acetate-vinyl chloride) (PVC). The latex blends were either used directly as paints, adhesives, or sealants, for instance, or spray-dried or pelletized. Not only did the latex blending give a wide variety of compositions, but also varied morphologies. The key drawback of latex’s blending was the high contaminant content: emulsifiers, initiator residues, chain transfers, stabilizers, etc.

Partial block or graft copolymerization

The reaction between the functionalized polymers and polyamides leads to graft copolymer formation at the interface during the melt mixing, which effectively stabilizes and stabilizes the mixture against delamination.

Acrylic-Styrene-Acrylonitrile (ASA) resins, initially marketed by BASF and subsequently by GEC and others, are normally developed through emulsion polymerization by graft copolymerization of the styrene-acrylonitrile copolymer (SAN) onto an acrylic rubber (usually poly butyl acrylate).

Preparation of interpenetrating polymer networks (IPN)

An interpenetrating network (IPN) is defined as a mixture of two polymer networks, one of which is at least one in the other’s presence. Morphology and the degree of phase separation, which sometimes is the basis for the distinction between the interpenetrating network and the blend.

The phase separation tendency is suppressed if there is an adequate degree of molecular interaction, and you can achieve a true molecularly or morphologically uniform interpenetrating network.

Compatible polymer blends

The compatibility between the polymer phases determines the properties of a heterogeneous polymer blend. In a polymer system, the interface between the polymer phases is defined by the interfacial tension that causes the blend to become miscible when approaching zero. In other words, the polymer blend would be mixable if there are heavy interactions between the phases.

With the phase-separated particles possibly undergoing coalescence, large interfacial tensions lead to phase separation; this would result in increased particle size and, in turn, decreased mechanical properties. By incorporating interfacial agents known as compatibilizers, you can minimize interfacial tension.

These are usually molecules with hydrophobic and hydrophilic regions that can be aligned between the two polymer phases and the interfaces, decreasing interfacial tension and increasing the polymer blends’ compatibility. Compatibility leads to decreased particle size, improved phase stability, and increased mechanical properties.

Using techniques such as thermogravimetric analysis, dynamic mechanical, thermal analysis, and universal testing machines, the physical properties of miscible, compatibilized, and un compatibilized blends can be defined.

Compatibilization of polymer blends

  • The addition of a small amount of co-solvent, a third ingredient, mixed with both levels.
  • The addition of a copolymer, one portion of which is mixable with a phase and the other part with a phase.
  • Inserting a significant amount of a core-shell copolymer, a modifier of compatibilizer-cum-impact.
  • Reactive compounding leading to the modification of at least one macromolecular species resulting in local miscibility regions being formed.
  • Mechano – Chemical blending, etc.

Compatibilization strategies

Colloidal sciences and technologies are primarily influenced by techniques built for the compatibility of immiscible polymer blends. For example, adding to a water-oil system a surfactant or emulsifier having both hydrophobic and hydrophilic entities allow the dispersion of one step in the other and improve the system’s stability.



In the water-oil method, the addition of an effective block or graft copolymers to an immiscible polymer blend plays a virtual role as the surfactant or emulsifier.



In general, there are three main approaches to the Compatibilization of immiscible polymer blends through the application of:



(1) Non-reactive copolymers of a block or graft

(2) Unique partnerships

(3) Reactive polymers

compatibilization of polymer blends

Interface in polymer blends

The interphase must be taken into account in the immiscible polymer blends. The interphase thickness of binary blends is inversely proportional to the interfacial tension coefficient, so the miscibility is poorer. The interfacial tension coefficient is higher, and the interphase thickness is lower.



The polymeric chain ends concentrate at the interface because of the thermodynamic forces, and the low molecular weight components extend to it. In binary blends, the interphase is characterized by a low density of entanglement, low viscosity, and weak interfacial adhesion. Compatibilization will mitigate these inter-phase disadvantages.



The thickness of the interphase depends on the polymer component’s miscibility as well as the compatibility.

interface in polymer blends

Morphology in polymer blends

The morphology depends upon the concentration of the blend. The dispersed phase forms almost spherical drops at a low concentration of either part, then cylinders, fibers, and sheets are formed at higher loading. Thus, the morphology can be categorized as scattered at both ends of the concentration scale and co-continuous in the middle range.

We can classify the flow-imposed morphologies as:

  • Dispersion (mechanical compatibilization),
  • Fibrillation,
  • Flow coalescence,
  • Interlayer slip,
  • Encapsulation and other

It is possible to stabilize the morphology in blends through:

  • Thick interphase,
  • Partial cross-linking
  • Addition of an immiscible polymer with a sufficient coefficient of spreading.

Commercial polymer blends

Polymer blends and composites chemistry and technology

There are several blending processes, i.e., mechanical (dominant), solution, latex, fine powder, and several IPN technology techniques. The finest dispersion is not always optimal. Given the mix’s final output, you must optimize the size and shape of the dispersed stage. The efficiency of polymer blends relies on the properties, material, and morphology of the ingredients.



Since compounding’s material and process almost fixes the cost, the economy depends on the blend’s morphology, adapted for a particular application. The blend economy is based on replacement estimates with increasing frequency, including the overall cost, material cost, compounding, shaping, assembling, customer satisfaction, aesthetics, service lifespans, and the ease of disposal or recycling.

commercial polymer blends

Evolution of Blends and Polymer Alloys



In the following sequence, the historical development of polymer blend technology



  1. Commodity resins (Styrenics, PVC, Acrylics, PE’s, PP).
  2. Engineering resins (PA, PEST, PC, POM, PPE), and
  3. Specialty resins (PSF, PAE, PARA, PAr, LCP, PEI, PEA, etc.).

Commodity resins & their polymer blends

This category includes five large-volume polymeric groups: polyethylene, polypropylene, styrene, acrylic, and vinyl. Commodity resins account for 71 per cent of all plastics consumed.



Polystyrene (PS)



With many polymers, PS is miscible like polyphenylene ether (PPE), polyvinyl methyl ether (PVME), poly-2-chloroprene (PCS), polymethyl styrene (PMS), polycarbonate of tetramethyl bisphenol-A (TMPC), co-polycarbonate of bisphenol-A and tetramethyl bisphenol-A, poly cyclohexyl acrylate (PCHA), poly ethyl methacrylate (PEMA), poly-n-propyl methacrylate (PPMA), poly cyclohexyl methacrylate (PCHMA).

It is necessary for miscible blends that both components are in the embedded state. During processing in the extension flow region, in particular (e.g., blow molding, film blowing, wire coating, calendar, or foaming)

PS/Commodity Resin Blends



The most popular immiscible PS blends are prepared to enhance PS or its copolymers’ impact power. Polyolefins form the second large group of styrene blends. Expressed for extrusion, injection, and blow molding, they demonstrate outstanding processability, enhanced impact strength, low absorption, and moisture shrinkage.

 Performance characteristics can regulate the composition and morphology (e.g., modulus, hardness, ductility, clarity, or gloss). Similar blends prepared either by different methods or comprising different compatibilizers have been identified by other patents.

PS/Engineering Resin Blends



Mixtures with PPE are the majority of PS blends that belong to this group. The PPE is the most “natural” additive that upgrades PS efficiency to the level desired. In applications where higher impact strength is needed, PS/PPE blends have been used as a substitute for PS.



 For the manufacture of hot water piping insulation, these alloys are easy to foam in automobile applications. The mentioned advantages are high HDT, non-flammability, dimensional stability, strength, stiffness, low molding cost, low density, easy lamination with decorative and climate-resistant ASA, and recyclability.

For all other engineering resins, PS is antagonistically immiscible, viz. PA, PC, POM, as well as PEST. To improve processability and reduce costs without unduly affecting efficiency, PS is added to these polymers.

Acrylonitrile-Butadiene-Styrene (ABS)

The ABS/SMA blends demonstrate outstanding processability, low warpage, high heat deflection temperature (HDT), high-temperature rigidity, good impact strength, and solvent and chemical resistance. They compete effectively for automotive applications with PPE or PC alloys (trims, instrument panels, roof linings, hubcaps, headlight housings), appliances and electronics, houseware, appliances, etc.

Biodegradable and non biodegradable polymer blends

In agriculture, biodegradability has been analyzed to prevent excessive moisture loss and growth of weeds and mitigate recyclability problems. An agricultural film can last as long as possible and then decompose under the impact of microorganisms and UV irradiation. Biopolymers are also biodegradable.



 They have been used for synthetic polymers in biodegradable blends. Some synthetic polymers, viz. PET, once copolymerized with poly lactones, is prone to biodegradation. Like polyglycols, polymers with regulated, reversed miscibility are also biodegradable. By mixing a thermoplastic resin with a biodegradable one, biodegradable polymer blends are also designed.



Blending creates a dispersion that will not pollute the environment after the dissolution of the biodegradable portion of the thermoplastic powder.

biodegradable and non biodegradable polymer blends
Image credits: https://www.researchgate.net/profile/Jeremy-Odent/publication/262022133/figure/fig1/AS:272612056105018@1442007187945/Classification-of-the-most-known-biodegradable-polymers.png

Starch blended biodegradable polymer

Starch blending



Native starches exhibit some limitations related to mechanical integrity, thermal stability, and moisture absorption. Owing to these drawbacks, to improve their properties, starches are also combined with other materials. Blending starches aim to reduce production costs; improve barrier characteristics and dimensional stability; reduce the hydrophilic quality of starch and increase biodegradability.



 Starches are mixed with low molecular mass plasticizers such as glycerol, glucose, sorbitol, urea, and ethylene glycol to improve such blends’ overall properties. The Thermoplastic Starch’s final properties vary depending on the form of the plasticizer blended with the starch. In general, by reducing strong intermolecular chain interactions, plasticizers produce an increase in flexibility, extensibility, and fluidity. TPS, moreover, remains a very hydrophilic material.

Applications of polymer blends

Starch/PVA: In some microbial ecosystems, both starch and PVA are biodegradable, but the biodegradability of PVA depends on its degree of hydrolysis and its molecular weight. The presence of PVA in a mixture enhances the mixture’s mechanical strength, water resistance, and weather resistance. Applications include water-soluble bags, biomedical and clinical field, packaging applications.

Starch/PLA (Polylactic Acid)- PLA has gained significant attention in the research of biomedical and packaging applications due to its biodegradable and hydrophobic properties. Commercial PLA grades are generally poly (L-lactic acid) and poly (D, L-lactic acid) copolymers. Various plasticizers such as poly (ethylene glycol), glycerol, glucose monoesters, citrate esters have been introduced to enhance PLA’s versatility and impact resistance. In terms of cost, properties, and biodegradability, TPS as a blend component for PLA offers significant benefits.

In this blend, PLA-gra-(maleic anhydride), PLA-gra-(acrylic acid), and PLA-gra-starch and poly(vinyl alcohol) have been used as compatibilizers for the hydrophilic properties of starch, and the hydrophobic properties of PLA cause low miscibility between the two compounds; for this purpose, good melt-blending techniques and the addition of compatibilizers are needed to increase effective interaction.

Applications include food packaging, electronic devices, textile industry, packaging industry. Starch/PCL (Polycaprolactone)- Poly(ε-caprolactone) is a linear, semi-crystalline, and aliphatic polyester. The rate of degradation of homo polymerizes PCL is related to its molecular weight and crystallinity level. Therefore, PCL copolymerization with other Aliphatic polyesters can boost their ability to be biodegradable.



On the other hand, starch’s presence increases the rate of PCL biodegradation because it intensifies hydrolysis reactions. Extensively used in the medical field.

Algae based polymers blends and composites

Algae-based polymer blends



  • Bioplastics based on algae require less time to break down: With some petroleum-based plastics taking 1000’s of years to break down and return to Mother Nature, this ensures that for decades to come, plastic products can no longer clog our landfills.
  • Algae Bioplastics are renewable: bioplastics are made from trees, plants, grass, as opposed to traditional plastics, and algae have recently shown great promise.
  • Algae Bioplastics need less energy to generate.
  • The easier recycling of algae bioplastics is
  • Bioplastics are not harmful.
  • Bioplastics minimize our reliance on foreign oil: it minimizes our dependence on foreign oil and offers a domestic solution.
algae based polymers blends and composites
Image credits: https://ars.els-cdn.com/content/image/1-s2.0-S0960852419309307-ga1.jpg

Ternary polymer blends

Ternary Blends



Ternary polymer blends are of particular interest, consisting of two immiscible polymers and a copolymer. Not only do they represent an excellent model for the study of polymer blend compatibility, but it is also incorporated

indirect commercial applications. Of industrial interest are the ternary blends consisting of two homopolymers and a copolymer.



To resolve the deficiencies of brittle and processing properties and reduce the overall cost of development, ternary blends between PCL, PLA, and starch with acrylic acid attached PLA70PCL30 compatibilizer. Applications of ternary blends are widely used in concrete mixtures, in High‐Efficiency Organic Photovoltaic Devices for Indoor Applications.

Ternary blended organic solar cells are high-power conversion efficiencies (PCE) based on polymer donor and non-fullerene acceptors (NFAs). Ternary devices do not display any decrease in PCE.

Nanostructured polymer blends

Advances in polymer blends pdf

Nanocomposites



The heterogeneous/hybrid materials formed by mixtures of polymers with inorganic solids on a nanometric scale are nanocomposites. Nanocomposites are most commonly prepared by biopolymer and inorganic matrix polymerization and in a sensitivity analysis. Particularly in unique, niche applications, nanocomposites have great potential.



One of the latest advances in nanocomposites’ addition to improving starch blends, one can generate these nanocomposites with a charge of between 2 and 8 per cent of nanoscale additions using inorganic or natural materials.

Nanofillers can be presented in various ways: spherical or polyhedral nanoparticles, nanotubes, and nanolayers. In plasticized starch-based matrixes, various types of nano-fillers are predominantly phyllosilicates, polysaccharides, carbonaceous nanofillers, etc.

Because of their availability, low price, and high aspect ratio, phyllosilicates are the nanofillers used most frequently. In starch-based materials, nanofillers’ main effects are thermo-mechanical stability improvement, biodegradation increase, and hydrophilicity reduction.

Several polymeric nanocomposites are used for biomedical applications such as tissue engineering, medication delivery, and cellular therapies. Various property combinations can be designed to imitate native tissue structure and properties due to unusual interactions between polymer and nanoparticles.

nanostructured polymer blends
image credits: https://www.researchgate.net/publication/331321446/figure/fig1/AS:730175323004934@1551098771972/Research-topics-in-polymer-nanocomposites-where-a-shape-b-dispersion-c.png

Rheology of polymer blends and nanocomposites

Polymer theology involves how the stress in a material or force applied is connected to the material’s deformation and flow. Rheology tests are conducted for intrinsic viscosity and relative viscosity while the polymer is in the melt stage or while the polymer has been dissolved in a solvent.



Three types of flow are used in rheological measurements: steady-state shearing, dynamic shearing, and elongation. The three can be categorized based on strain γ, vorticity, and uniformity of stress, σ, within the measuring space.

The viscoelastic nature of polymer blends is the key characteristic that distinguishes polymer blends’ rheological behavior from simpler liquids. The relationship between mixing morphology and rheology and the significance of surface energy effects, such as interparticle and interfacial interactions, is considered in miscible polymer systems’ general rheological features.



The rheological activity of immiscible polymer blends is considered in more detail, with allowance for both thermodynamic and morphological parameters since most polymers are immiscible. The effect of flow on morphology is considered in phase separation, drop deformation, breakup, and fiber formation.

Various steps are provided based on the study of blends’ rheological behavior in both rheological test equipment such as parallel plate, rotational, steady-state, oscillatory, capillary, elongational, and processing equipment such as extruders, mixers, molds, dies, etc. The rheological behavior observed is compared to the theoretical, numerical, or empirical model predictions.

Rheological models for miscible and immiscible blends

Miscible Blends                                                 Immiscible Blends

 Solutions                                                             Suspensions

 Homologous                                                       Polymer Blends

                                                                               Block copolymers

Rheology of polymer blends
Image credits: https://onlinelibrary.wiley.com/cms/asset/d2d339e1-f6a7-4ef6-a5df-47079c742c2f/mgra001.jpg

Thermodynamics of Polymer Blends

The performance of polymer mixtures depends on the polymer’s components’ properties and how they are arranged in space. Thermodynamics and flow-imposed morphology regulate the spatial structure.

 A preference to use low molecular solutions is observed due to its thermodynamic properties. Also, purifying the polymers before calculating their thermodynamic properties is a common procedure. However, industrial polymers have high molecular weights and are modified by adding additives of low molecular weight.

Also, they are processed under high flow rates and stresses that exclude thermodynamic equilibrium possibilities. Various manufacturers use different additive formulations of the same polymer. These are “used up” over the lifetime of manufacturing and products, modifying their nature and chemical structure.

They can greatly influence, through the physical, the thermodynamic properties of a polymeric mixture of that of a co-solvent and its chemical effects. Additives of one polymer component of a blend, for example, can react chemically with additives of another polymer component, neutralizing each other mutually.

Flory Huggins interaction parameter polymer blends

The lattice principle developed by Flory and Huggins for the enthalpy of mixing in polymer solutions can be formally extended to polymer mixtures, providing a rough estimate of polymers’ miscibility.



According to Flory Huggins assumptions in polymer blends:

  • Polymer molecules are much larger as compared to solvent molecules.
  • A polymer molecule is in the form of a long chain having several segments.
  • The size of the solvent molecule is comparable to the size of one segment of the polymer chain.
  • Each space in the lattice is occupied by either one solvent molecule or a segment of a polymer molecule.
  • Each site occupied by a polymer segment must have two adjacent polymer sites so that there is a continuous path of polymer segments.
Flory Huggins two dimensional model
Image credits: https://www.researchgate.net/profile/Adeyinka-Aina-2/publication/295246007/figure/fig1/AS:340294227775519@1458143874457/Two-dimension-representation-of-the-Flory-Huggins-model-solvent-molecules-solute.png
Flory Huggins interaction parameter polymer blends
Flory Huggins lattice principle

Additive behaviour polymer blend

Additives in Polymer Blends



Additives are chemicals applied to the base polymer to enhance processability, increase the life cycle, and achieve the final product’s desired physical or chemical properties. Although the additive content is usually to some extent, its effect on polymers’ efficiency and stability is important.

Each type of polymer needs a specific type of additives. It should be noted that the additives used for one resin form can have adverse effects on another resin and its additives.

Common groups of additives:

Plasticizers: Rheology, as well as elasticity, are improved by plasticizers. One of the most common polymer additives is plasticizers, and phthalate esters used in PVC products are examples.

Anti-aging stabilizers: Additives, such as antioxidants, stabilizers, or anti-Ozon ants, are added to combat plastic corrosion and greatly increase the finished product’s life. Phenols, arylamines, and phosphates are examples of antioxidants, and benzophenones and benzotriazoles are examples of UV stabilizers.



Blowing agents: These additives are applied to the base polymer, and they decompose when a particular temperature is reached during manufacturing, releasing gas inside the plastic that forms a cellular structure. This system decreases density and strengthens the properties of insulation. From salts to complex nitrogen-releasing chemicals, there are several different blowing agents available.

Flame retardants: Flame retardants avoid fire, postpone it, or slow it down. To prevent the combustion and burning of plastics, these additives are common in electrical products. Flame retardants may be combined with the base polymer or applied to the finished product during the plastic processing phase or even as a surface layer finish. Halogens such as bromines and chemistries of phosphorus and nitrogen are normal flame retardant.

Nucleating agents: These additives enhance transparency and mechanical properties. They also speed up the rate of plastic crystallization, reducing the cycle time overall.

Processing: To enhance the material’s processability and processing characteristics, these additives are mixed with the polymer. Lubricants are fatty acids, hydrocarbon waxes, and certain polyethylene forms are examples of manufacturing additives.



Anti-static: These additives are used to reduce and, in some cases, remove the potential to enhance static electricity on the plastic surface. Amine, ammonium compounds, and polyethylene glycol esters are examples of anti-static additives.



Colorants: These chemicals are meant to alter the color of the final product. Sometimes, these additives are pigments or colorants. As the two polymers have to be compatible, the particular dye or pigment chosen is primarily dependent on which base polymer is being used.

Odor: To change the odor of the finished product, there are also additives. When a chemical is applied to paints to create a more pleasant scent, an odor agent is an example.

Antimicrobial: Antimicrobial additives are becoming more common given the growing trend in implantable medical devices and other technologies. These agents shield the plastic from corrosion and minimize the pot.

Additive, synergistic behavior of polymer blends

Physical blends of stabilizers with various stabilization mechanisms are current trends in the synergetic behavior of blends. The combined effect of the two stabilizers is better than the amount of the effects of each component alone. The synergism of phenolic and phosphite antioxidants has been illustrated in various publications.

Polymer Blending and Recycling

It becomes increasingly necessary to recycle. Its methods depend on the form and source of the polymer. The three simple recycling methods used:

  • Direct, where the resins cleaned are integrated into virgin material,
  •  The reprocessing of mixed plastics by either combining or turning them into plastic wood or plastic concrete.
  •  Type of feedstock, which may include depolymerization or pyrolysis.
  •  It is only the method that is important.

It can be subdivided into:

  •  Direct recycling compatibilization and upgrading of resins,
  •  Compatibilization and upgrading for reprocessing of mixed plastics, and
  •  Recycling of blends of polymers.

Applications of Polymer Blends

The advantages of polymer blends for meeting the requirements of the application can be summarized as follows:



  • Lower cost of production
  • Speedier growth
  • Recycling problems (post-consumer)
  • Regulatory factors.
  • Chemical resistance
  • Barrier
  • Weathering
  • Surface features
  • Audio deadening (acoustics)
  • Size consistency.
applications of polymer blends

Applications in Automotive

  • The applicability of plastics in automotive applications that were historically the domain of homopolymers and metals has been improved by blending and alloying technology. The resulting new materials also boast synergistically improved strength, resistance to impacts at low temperatures, high-temperature capability, and good paintability.
  • Automotive manufacturers have recognized the inherent advantages of polymer blends for exterior automotive applications.

They include:

  1. Reduction in weight
  2. Consolidation/integration/reduction of portions
  3. Reduced cost of instrumentation
  4. Increased versatility of the concept
  5. Enhanced robustness to limited effect
ABS Applications in Cars panels

Polymer blends applications in the garden

For the lawn and garden market, there are two performance types of plastic items. Real, first-class structural materials must be of very high rigidity with a tensile modulus in the range of at least 35 GPa. This can be as high as 140 GPa in some situations.

Polymer Blends application in Electrical and Electronics

The domain of thermosets has long been electrical applications. Thermoplastic blends and alloys, however, possess strong advantages:

  • Weight savings of 30 to 50 per cent because of lower density and the potential to decrease wall thickness.
  • Disposal logistics removal
  • Reduced amounts of scrap
  • Reduced secondary activities
  • Consolidating pieces
  • Increase the freedom of design
  • Lowering cycle time.

Blended conducting polymers

Applications in the medical field

The effect and strength efficiency profiles of amorphous systems are ideal for most blends and alloys in medical devices. Autoclaving is one of the most important success standards for medical applications. This is a popular process that uses a mixture of high pressure and steam to sterilize instruments and equipment.

Polymer Blends application in construction

Weatherability is the most important set of performance parameters for exterior construction and construction applications that separate candidates from candidates. Blends of polymers. Exterior siding, door and window casings, and other trim components are the standard applications that Polymer blends are listed for.

The content systems contain blends of saturated rubber such as butyl acrylate with styrenics such as SAN. Alloys made of PS and acrylic rubber are also used. Another relatively recent use for polymer blends is roof panels and

Polymer Blended Bitumen Roads



Blue film wax polymer blend

Applications in Beauty



Due to its very elastic and soft texture, it is applied in the waxing elements. A mixture of raw materials of different melting points is Blue Film Wax. The polymer content allows a very fine and flexible layer to be added that does not crack when removed.

Blue film wax

Blended polymer for waterproofing



To attain the performance properties of an effective waterproof coating, polymers are required. They contribute to resistance to water, strength, flexibility, and adhesion.

The following features contribute polymers to waterproofing performance:

  • Water resistance: ability to repel water, prevent water intrusion, and resist standing water.
  • Strength and flexibility: tear resistance with the ability to withstand impacts and bridge cracks on surfaces.
  • Surface adhesion: ability to adhere tightly to multiple substrates.
  • Asphalt and coal tar are the two types of bitumen that are excellent waterproofing properties because of their flexibility in nature.
  • With the development of synthetic plastic & synthetic rubber waterproofing device, polymer technology’s progress has obtained a new life lease, creating a polymer-modified bitumen membrane. Atactic Polypropylene (APP) & Styrene Butadiene Styrene (SBS) are two bitumen compatible polymers.

Conclusion and outlook

Polymer blends offer a wider choice of performance attributes, tuned at a fair cost for particular applications. This technology is, in essence, a shortcut to the production of complex polymer species. Blending needs a comprehensive understanding of many disciplines, from miscibility and compatibility thermodynamic principles to surface and interface characteristics, morphology, rheology, processing, and efficiency.



There is the critical importance of the inter-relation between these components, viz. Flow affects the energy of the interfaces, miscibility, morphology, and therefore performance. Also, most industrial blends are in a non-equilibrium state. The output of the product depends on the chosen method of processing and Variables in systems.

As basic knowledge improves and the demand for higher material performance increases, blending becomes increasingly important.

Let us know what you think, comment below
